Are you looking for “How to Wire a Ceiling Fan” instructions and wiring diagrams? If so, you’ve come to the right place. Wiring a ceiling fan with light is a DIY job that anyone comfortable doing routine electrical work can do.
Once you understand the ceiling fan wiring colors, even if you’ve never attempted to wire a ceiling fan, the steps are straightforward and accessible to even the most casual DIY handyman.
How to Wire a Ceiling Fan and Light
Follow these Five Steps to Safely Wire a Ceiling Fan with Light:
Step 1: Turn Off the Power at the Breaker
Before you can start wiring your new ceiling fan, you’ll need to turn off the power to the circuit you intend to work on by turning off the correct breaker in your home’s electrical panel.
Even if the breaker switches are clearly labeled, it’s also a good idea to use a non-contact voltage tester to confirm that the power is off before proceeding, as it’s always possible that the breakers are mislabeled.
To prevent electrical shock, the voltage tester should be applied to the black wire inside your fan’s electrical box, as this is usually the hot wire from the power supply.
Step 2: Identify Wires
The wires inside of a ceiling fan are relatively simple, but you have to know what each one is to connect them correctly. Typically, you’ll see black, white, blue, and green wires inside a ceiling fan.
While you should read the instructions on your new fan carefully to be sure, the convention is that the black wire is the power supply for the fan, the blue wire is the power supply for the light, the white wire is neutral, and the green wire is the ground.
In addition to the wires on the fan itself, you’ll need to identify the wires in your ceiling box.
ou should find one black wire and one white wire in the box and a bare copper ground wire. As with the cables in the fan itself, the black wire is hot, and the white wire is neutral.
Although this usually won’t apply, there will be a slight difference if you have independent switches for the fan and the light rather than running from the same switch.
If you have a double-switching setup, you should find an additional red wire in your ceiling box.
If you’re wiring a ceiling fan with light with one switch, though, this additional wire won’t be needed.
Step 3: Connect the Wires

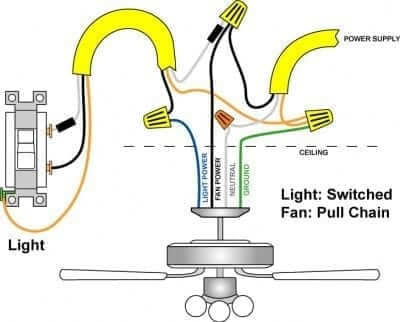

The wiring diagram above is for “Typical” wiring (The light is Switched & a pull chain powers the Fan)
Once you have found and identified all of the wires on your fan and in your electrical box, you can work on connecting them. For this, you’ll need three twist-on wire connectors.
The first connector will join the black power supply wire from the electrical box to the black and blue wires from the fan.
The second one will connect the two white neutral wires, while the third will join the ground wires. Make sure to get a firm connection at each joint by twisting the wires together before finishing the connection with twist-on wire nuts.
Also, strip enough insulation off each wire to give yourself plenty of room to make solid contact. If necessary, you can always cut off any extra exposed wire before you put the connector on.
It should be noted that the instructions above are for the simplest and most common method of wiring a ceiling fan. This method involves a single-power switch supplying power to the fan motor and the light, with independent pull switches on the fixture.
If you plan to wire the fan motor and light independently or are using a fan fixture that does not include pull switches, you may need to look up a ceiling fan wiring diagram specific to your approach to the project.
If You plan to provide power to the Fan & Light and Switch simultaneously (not using the pull chain for the fan separately), refer to this diagram:
Finally, If you plan to wire your ceiling fan and light so they BOTH operate from pull chains – refer to this diagram:
Of course, with the above method, your ceiling fan must have two “exposed” chains for operating the fan and the light kit separately.
Step 4: Install Ceiling Fan With Light Kit
Follow the Manufacturer’s instructions to install a light kit onto the ceiling fan and secure the ceiling fan assembly to the ceiling mount bracket.
If you have questions, such as what ceiling fan bracket to use, please see our How to Install Ceiling Bracket content below.
Step 5: Test Ceiling Fan & light Operation
Once the connections are made, you can turn the power back on and test the fan to ensure everything works. If you’ve done your job correctly, the fan and the light should come on when you turn the wall switch (or portable remote) to the on position.
If they don’t, remember that your fan has pull-cord chain switches that internally control the fan motor and the light.
Try pulling each chain switch independently—with the main wall switch turned on—before doing anything else. If the ceiling fan isn’t working, turn the power back on and re-examine your connections to be sure they are making good contact.
How to “Install” a Ceiling Fan
In addition to knowing how to “Wire” a ceiling fan, you’ll also need to learn how to “Install” a new Ceiling Fan correctly.
While the process will vary a little depending on the fan you buy, the basics of ceiling fan installation are relatively simple.
If you’re installing a ceiling fan where there wasn’t one before, the first step will be to install a new electrical box and a fan brace, a metal bracket that runs between ceiling joists and supports the weight of the fan.
If you’re replacing an old ceiling fan, these steps should already be taken care of and in place.
With the necessary infrastructure in place, your next step will be to attach the mounting bracket that comes with your fan. This bracket will mount to the ceiling and provide a stable point to install the fan assembly.
You can assemble the fan and attach it to the mounting bracket after selecting the correct “down rod length.” *
At this point, the fan assembly is ready to be wired up. To ease the installation process, you can leave the fan blades off and attach them after the wiring is completed.
Keeping the fan blades uninstalled until the fan assembly is ceiling-mounted will leave you much more room to work while making all your initial connections.
How To Install Ceiling Fan Video:
Tips For Installing a Ceiling Fan:
1) Down rods for Sloped Ceilings:
If you have a “sloped ceiling,” you will need to make sure that you use the correct “down-rod” length to avoid having fan blades hit the ceiling when in motion. Most kits have optional length down rods: 6”, 12”, etc. Make sure you select the correct length for your installation
2) Ceiling Height:
Most manufacturers recommend a minimum clearance of 7 ft. between the bottom of ceiling fan blades and the floor. With a 12” ceiling fan fixture (typical) you would need a minimum ceiling height of 8 ft.
3) Wall Clearance
Distance from outside walls to the Outer edge of fan blades should be a minimum of 24”.
Note: About Your Safety:
Before you grab your toolbox and set out to wire a ceiling fan, be sure to take proper safety precautions. This type of electrical work isn’t overly complicated, but any electrical work can be dangerous if you don’t know what you’re doing.
Always work with the power turned off and proceed with care and caution at each stage of an electrical project.
If you are unsure how to proceed or aren’t comfortable doing the work safely, it would be a good idea to hire a professional electrician to do this job instead.
Also, be sure to check the type of wiring in your home. These instructions are offered for installing switches using standard Copper wiring.
Some homes, however, use aluminum wiring instead. If your house has aluminum wires, it is generally best to hire a professional to do your electrical work.
Frequently Asked Questions (FAQ):
Q: Can I Install a Ceiling Fan Where the Light Fixture Was?
A: You can install fans where the ceiling light used to be located, but it will take additional support to hold the weight of a ceiling fan. These are the two ways to add support for a ceiling fan:
1). Add a 2″ x 4″ piece from the attic between the joists and directly above the junction box that held the ceiling light. Now, install (2) through bolts or (2) long deck screws from the room below, through the junction box (avoiding wires!), and into the 2 x 4
2). The second option is to use a Ceiling Bracket (See: How to Install Ceiling Fan) above. This step, however, will require removing the existing electrical junction box that held the original light fixture.
Check out this video on Installing a ceiling fan where a light is now.
Q: What Electrical Wires Go Together In A Ceiling Fan?
A: The Black wire is hot and goes to the fan, the White wire is Neutral, the Green is the ground wire, and the Blue Wire is for the Light (if your ceiling fan has a light built-in)
Q: Is It Hard To Install A Ceiling Fan?
A: For most DIY’ers, we rate installing a ceiling fan a six on a scale of 1-10. The Four most essential things to remember for installing a ceiling fan are:
1) Turning the power off at the breaker, 2) Providing adequate ceiling support, 3) Having proper wiring connections, and 4) Selecting the proper fan blade size for the room.
Conclusion
Ceiling Fans, with or without a light kit, are typically one of the easiest DIY electrical projects for homeowners. You should be good to go if you use good common sense, pay attention to safety precautions, and possess sufficient skills to wire the electrical connections!
